Elite 3100 Sliding Series – Ultra Slim. Ultra Strong. Ultra Premium.

Key Features
6063 Aluminum Alloy Profiles
Crafted from high-strength 6063 profile alloy for superior structural integrity and long-term durability.

Minimal Interlock – Only 20mm
Experience uninterrupted panoramic views with an ultra-slim interlock profile of just 20mm — one of the slimmest in its class.

Supports DGU Glass up to 31mm
Accommodates Double Glazed Units up to 31mm thick for enhanced energy efficiency and sound insulation.

High Load Capacity – Up to 450kg Per Shutter
Ideal for large, heavy sliding panels, making it perfect for luxury residences and commercial facades.

Multi-Point Locking System
Secure your space with smooth-operating multi-locking mechanisms designed for maximum safety and functionality.

‘L’ Type Corner Window Option
Expand your design capabilities with corner-opening (L-type) sliding systems for a seamless modern look.



Technical Overview

Specification	Value
Profile Material	6063 Aluminum Alloy
Glass Thickness	Up to 31 mm (DGU)
Interlock Width	20 mm
Shutter Capacity	Up to 450 kg per shutter
Locking System	Multi-Point Locking

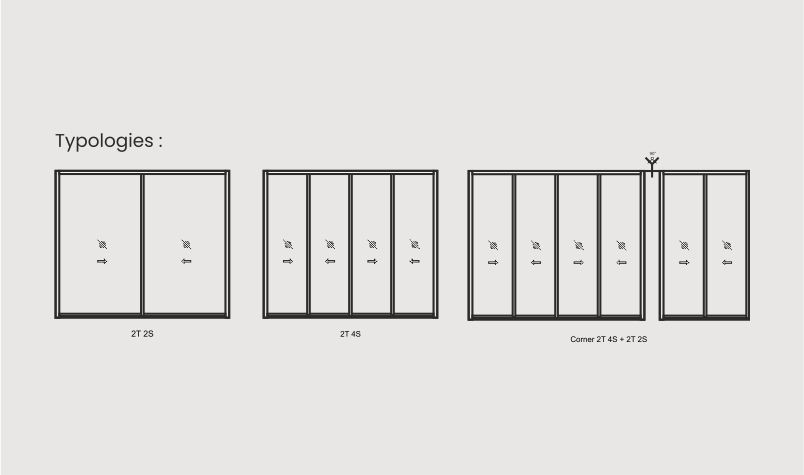

Available Configs	2-Track / 3-Track / L-Type
Finish Options	Powder Coated, Anodized, Wood Finish



Ideal Applications

• Ultra-Luxury Homes & Villas

• High-End Apartments & Penthouses

• Hotels & Resorts

• Modern Glass Façades

• Retail Spaces & Lounges

Why Choose Elite 3100 by ADS Systems?

The Elite 3100 Sliding Series combines sleek design, heavy-duty performance, and cutting-edge technology into one premium sliding solution. Engineered by ADS Systems, this series is built for those who don’t compromise on aesthetics, efficiency, or durability. Whether you're constructing a dream home or a landmark commercial property, Elite 3100 delivers visual elegance and performance that lasts.
